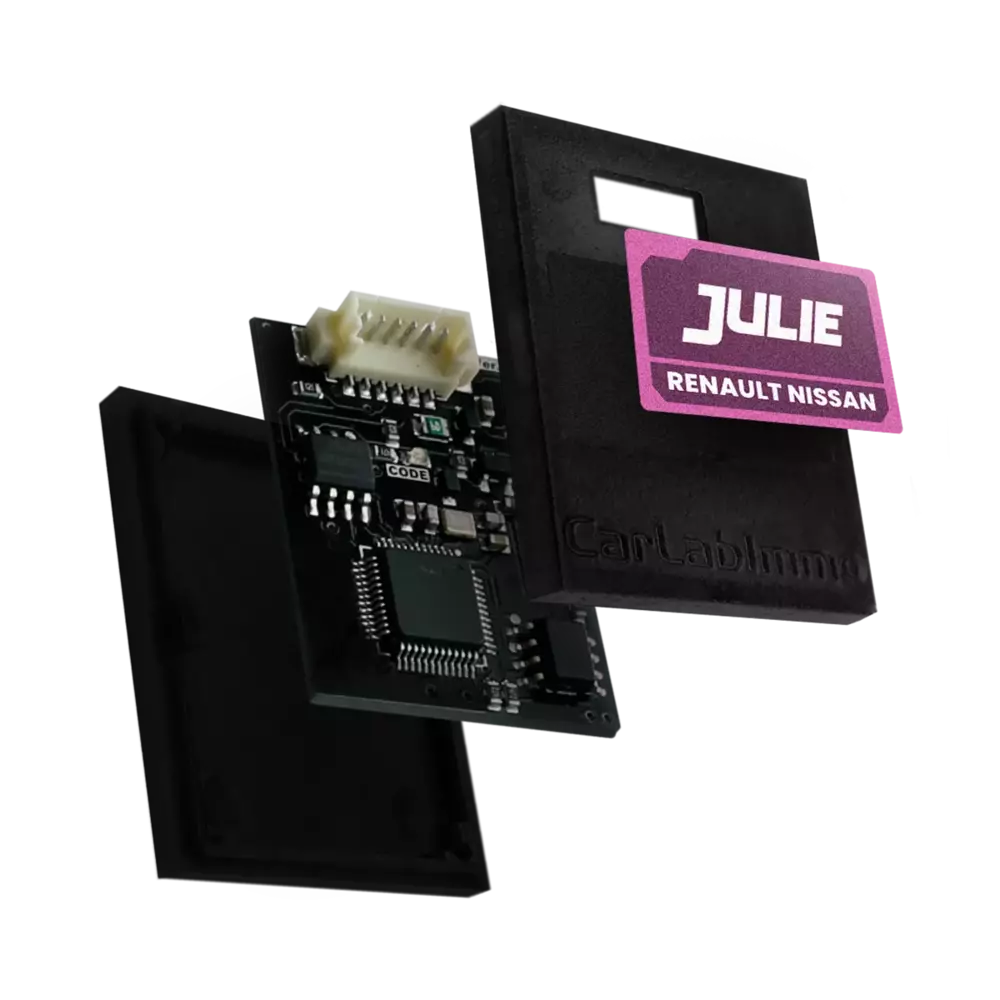

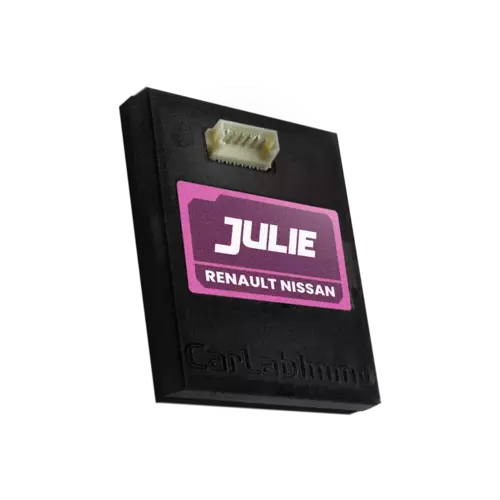

EMULATOR dedykowany Julie RENAULT NISSAN

Julie RENAULT NISSAN Emulator jest przeznaczony do wymiany sygnału immobilizera

w pojazdach Renault Group.
Obsługuje następujące ECU z transmisją CAN i K-Line:

IMMO OFF

Marki: Renault / Dacia / Nissan / Opel







Obsługiwane typy ECU:

Bosch:

• Bosch EDC15
• Bosch EDC15M1-5.x | EDC15V1-5.x (NATS 4 and 5)
• Bosch EDC15VM+ 2.x
• Bosch EDC16
• Bosch EDC16C36
• Bosch EDC16CP33
• Bosch EDC17
• Bosch EDC17C42
• Bosch EDC17C84 (ISK Password Program available)
• Bosch EDC MSA 15.5-5.x
• Bosch EDC MS 6.3
• Bosch MD1CS006 (ISK Password Program available)
• Bosch M 4.4.2

Continental:

• Continental EMS3110
• Continental EMS3120 (ISK Password Program available)
• Continental EMS3125 (ISK Password Program available)
• Continental EMS3140 (ISK Password Program available)
• Continental EMS3141 (ISK Password Program available)
• Continental EMS3150 (ISK Password Program available)
• Continental EMS3155 (ISK Password Program available)
• Continental EMS3160 (ISK Password Program available)
• Continental EMS3161 (ISK Password Program available)
• Continental SID305
• Continental SID306
• Continental SID307
• Continental SID309
• Continental SID310
• Continental SID321 (ISK Password Program available)

Delphi

• Delphi DCM1.2
• Delphi DCM3.4
• Delphi DDCR

Hitachi

• Hitachi - Vehicles equipped with NATS 6
• Hitachi MEC32-020 -> MEC32-110
• Hitachi MEC32-210 -> MEC32-680
• Hitachi MEC36-xxx
• Hitachi MEC37-xxx
• Hitachi MEC43-xxx
• Hitachi MEC81-730
• Hitachi NEC008-669 - Vehicles equipped with NATS 4 / 5
• Hitachi MEC with 93C46 and 93C56 EEPROM memory - 1.5 | 1.8 | 2.0 gasoline (NATS 4 and 5)

Lucas

• Lucas DCU3R

Magneti Marelli

• Magneti Marelli IAW 5NR2
• Magneti Marelli IAW4AF (NATS 4 and 5)

Sagem

• Sagem S2000
• Sagem S3000

Siemens

• Siemens EMS 3125
• Siemens EMS 3132
• Siemens EMS 3134
• Siemens SID 301
• Siemens SID 304
• Siemens SID 309
• Siemens SIM32
• Siemens Sirius 32
• Siemens Sirius 34

Valeo

• Valeo V40
• Valeo V42
• Valeo V50
• Valeo V50.1

Emulator obsługuje również następujące sterowniki ECU wyposażone w procesor TMS374:

Siemens

• Siemens Fenix 5 (Renault | Volvo)

Sagem

• Sagem Safir 1 (Renault)
• Sagem Safir 2 (Citroen | Peugeot | Renault)
• Sagem SL96 (Citroen | Peugeot)

Magneti Marelli

• Magneti Marelli IAW 1AP10 (Citroen | Peugeot)
• Magneti Marelli IAW 1AP20 (Citroen | Peugeot)
• Magneti Marelli IAW 1AP40 (Citroen | Peugeot)
• Magneti Marelli IAW 1AP41 (Citroen | Peugeot)
• Magneti Marelli IAW 1AP43 (Citroen | Peugeot)
• Magneti Marelli IAW 1AP80 (Citroen | Peugeot)
• Magneti Marelli IAW 1AP81 (Citroen | Peugeot)
• Magneti Marelli IAW 1AP83 (Citroen | Peugeot)
• Magneti Marelli IAW 1AP90 (Citroen | Peugeot)

Supported ESL:

• Renault Captur
• Renault Clio III
• Renault Clio IV
• Renault Espace IV (2004-2006)
• Renault Espace IV (phase II)
• Renault Espace IV (phase III)
• Renault Fluence
• Renault Laguna II (lift 2004-2006)
• Renault Laguna III
• Renault Megane II (lift 2004-2006)
• Renault Megane III
• Renault Scenic II
• Renault Scenic III
• Renault Talisman

Bosch EDC15 CAN bus

• Renault Avantime 2.2 dCi 120HP 2001-2003
• Renault Espace IV 2.2 dCi 150HP 2002-2006
• Renault Espace IV 1.9 dCi 120HP 2002-2006
• Renault Kangoo I 4x4 1.9 dCi 84HP 2003-2009
• Renault Laguna II 1.9 dCi 120HP 2001-2005
• Renault Master 2.5 dCi 100HP 2000-2010
• Renault Trafic 2.5 dCi 135HP 2001-2006
• Renault Trafic 1.9 dCi 101HP 2001-2006
• Renault Trafic 1.9 dCi 82HP 2001-2006

Numer ECU:

• 0 281 010 297 (Renault Laguna II 1.9 dCi 120HP 2004)
• 0 281 010 482 (Renault Laguna II 1.9 dCi 120HP 2001)
• 0 281 010 556 (Renault Laguna II 1.9 dCi 120HP 2003)
• 0 281 010 632 (Renault Trafic 1.9 dCi 120HP 2002)
• 0 281 010 633 (Renault Trafic 1.9 dCi 101HP 2001)
• 0 281 010 637 (Renault Laguna II 2.2 dCi 150HP 2003)
• 0 281 011 039 (Renault Kangoo I 4x4 1.9 dCi 84HP 2002)
• 0 281 011 101 (Renault Laguna II 1.9 dCi 120HP 2004)
• 0 281 011 137 (Renault Kangoo I 4x4 1.0 dCi 84HP 2008)
• 0 281 011 148 (Renault Laguna II 1.9 dCi 120HP 2002)
• 0 281 011 324 (Renault Laguna II 1.9 dCi 120HP 2003)
• 0 281 011 356 (Renault Trafic 2.5 dCi 135HP 2003)
• 0 281 011 357 (Renault Avantime 2.2 dCi 120HP 2003)
• 0 281 011 432 (Renault Master 2.5 dCi 100HP 2003)
• 0 281 011 529 (Renault Trafic 1.9 dCi 101HP 2005)
• 0 281 011 530 (Renault Trafic 1.9 dCi 82HP 2004)
• 0 281 011 562 (Renault Trafic Kangoo I 4x4 1.9 dCi 84HP 2005)
• 0 281 011 571 (Renault Laguna II 2.2 dCi 150HP 2003)
• 0 281 011 723 (Renault Espace IV 1.9 dCi 120HP 2005)
• 0 281 011 724 (Renault Espace IV 2.2 dCi 150HP 2004)
• 0 281 011 890 (Renault Trafic 1.9 dCi 101 2004)
• 0 281 011 940 (Renault Master 2.5 dCi 100HP 2003)
• 0 281 011 969 (Renault Laguna II 1.9 dCi 120HP 2005)
• 0 281 013 923 (Renault Trafic 1.9 dCi 101HP 2005)

Bosch EDC15 K-Line

• Renault Espace III 2.2 dCi 130HP 2000-2002
• Renault Kangoo I 1.9 dCi 80HP 2003-2009
• Renault Laguna I 1.9 dCi 107HP 1998-2001
• Renault Master II 2.5 dCi 115HP 2000-2003
• Renault Master II 2.2 dCi 90HP 2000-2003
• Renault Master II 1.9 dCi 82HP 2000-2003
• Renault Megane I 1.9 dCi 102HP 1999-2002
• Renault Scenic I RX4 1.9 dCi 102HP 2000-2003
• Renault Scenic I 1.9 dCi 102HP 1999-2003
• Volvo S40/V40 1.9 dCi 102HP 2000-2004

Numer ECU:

• 0 281 001 934 / 8200078730 (Renault Megane I 1.9 dCi 102HP 2001)
• 0 281 001 997 / 7700113027 (Renault Laguna I 1.9 dCi 107HP 1999)
• 0 281 001 999 / 7700114854 (Renault Espace III 2.2 dCi 130HP 2002)
• 0 281 010 189 / 7700115725 (Renault Scenic I RX4 1.9 dCi 102HP 2000)
• 0 281 010 320 / 8200110105 (Renault Master II 2.2 dCi 90HP 2001)
• 0 281 010 441 / 8200112254 (Volvo V40 1.9 dCi 102HP 2003)
• 0 281 010 483 / 8200127078 (Renault Scenic I 1.9 dCi 102HP 2002)
• 0 281 010 783 / 8200189093 (Renault Master II 1.9 dCi 82HP 2001)
• 0 281 010 784 / 8200132188 (Renault Master II 2.5 dCi 115HP 2002)
• 0 281 010 787 / 8200132175 (Renault Master II 2.2. dCi 90HP 2001)
• 0 281 010 819 / 8200166362 (Renault Megane I 1.9 dCi 102HP 2002)
• 0 281 010 843 / 8200166496 (Renault Scenic I 1.9 dCi 102HP 2002)
• 0 281 010 894 / 8200085946 (Renault Kangoo I 1.9 dCi 80HP 2003)
• 0 281 010 980 / 8200197968 (Renault Scenic I 1.9 dCi 102HP 2000)
• 0 281 011 102 / 8200153945 (Renault Scenic I 1.9 dCi 102HP 2003)
• 0 281 011 105 / 8200243786 (Renault Master II 2.5 dCi 115HP 2003)
• 0 281 011 106 / 8200243785 (Renault Master II 2.2 dCi 90HP 2003)
• 0 281 011 254 / 8200236618 (Renault Master II 2.5 dCi 115HP 2002)
• 0 281 011 549 / 8200370779 (Renault Master II 2.5 dCi 115HP 2003)

Bosch EDC15M1-5.x | EDC15V1-5.x

• Nissan Almera (N16) 2.2 Di 110HP 2000-2002
• Nissan Almera Tino 2.2 Di 114HP 2000-2006
• Nissan Cabstar 3.0 TD 120HP 1997-2007-2002
• Nissan Primera (P11) 20 TD 90HP 1999-2002
• Nissan Terrano 2.7 TD 125HP 1996-2007

Numer ECU:

• 0 281 010 141 (Nissan Almera 2.2 Di 110HP 2003)
• 0 281 010 265 (Nissan Almera Tino 2.2 Di 114HP 2003)
• 0 281 010 284 (Nissan Terrano II 2.7 TD 125HP 2002)
• 0 281 010 316 (Nissan Primera P11 2.0 TD 90HP 2001)
• 0 281 010 452 (Nissan Cabstar 3.0 TD 120HP 2002)
• 0 281 010 708 (Nissan Almera 2.2 Di 110HP 2001)
• 0 281 010 718 (Nissan Almera 2.2 Di 110HP 2002)
• 0 281 010 809 (Nissan Almera 2.2 Di 110HP 2002)
• 0 281 011 040 (Nissan Terrano II 2.7 TD 125HP 2002)
• 0 281 020 061 (Nissan Cabstar 3.0 TD 120HP 2002)
• 0 281 020 062 (Nissan Cabstar 3.0 TD 120HP 2005)

Bosch EDC15VM+ 2.x

• Renault Clio II 1.9 dTi 80HP 1999-2001
• Renault Kangoo I 1.9 dTi 80HP 1997-2003
• Renault Megane I 1.9 dTi 98HP 1997-2001

Numer ECU:

• 0 281 010 442 / 8200049306 (Renault Megane I 1.9 dTi 98HP 2000)
• 0 281 010 501 / 8200049304 (Renault Clio II 1.9 dTi 80HP 2001)
• 0 281 010 502 / 8200085921 (Renault Kangoo I 1.9 dTi 80HP 2001)
• 0 281 010 788 / 8200049304 (Renault Clio II 1.9 dTi 80HP 2001)

Bosch EDC16

• Renault Espace IV 2.0 dCi 130HP 2002-2014
• Renault Laguna II 1.9 dCi 120HP 2001-2007
• Renault Mascott 3.0 dCi 150HP 2004-2010
• Renault Master 2.5 dCi 145HP 2004-2010
• Renault Master 1.9 dCi 82HP 2001-2010
• Renault Megane II 1.9 dCi 130HP 2006-2008
• Renault Megane II 1.9 dCi 120HP 2006-2008
• Renault Trafic 2.5 dCi 150HP 2006-2014
• Renault Trafic 2.0 dCi 115HP 2001-2014
• Renault Trafic 2.0 dCi 90HP 2001-2014

Numer ECU:

• 0 281 010 769 / 8200184294 (Renault Megane II 1.9 dCi 120HP 2006)
• 0 281 011 275 / 8200305678 (Renault Scenic 1.9 dCi 120HP 2004)
• 0 281 011 277 / 8200391957 (Renault Mascott 3.0 dCi 150HP 2005)
• 0 281 011 390 / 8200310863 (Renault Scenic II 1.9 dCi 120HP 2006)
• 0 281 011 486 / 8200303367 (Renault Master 1.9 dCi 82HP 2009)
• 0 281 011 549 / 8200310863 (Renault Megane II 1.9 dCi 120HP 2005)
• 0 281 011 776 / 8200391957 (Renault Megane II 1.9 dCi 120HP 2004)
• 0 281 012 200 / 8200391957 (Renault Master 3.0 dCi 150HP 2005)
• 0 281 012 588 / 8200527713 (Renault Laguna II 1.9 dCi 120HP 2006)
• 0 281 012 659 / 8200560320 (Renault Espace IV 2.0 dCi 130HP 2007)
• 0 281 012 769 / 8200391966 (Renault Megane II 1.9 dCi 120HP 2007)
• 0 281 013 018 / 8200635663 (Renault Trafic 2.5 dCi 150HP 2006)
• 0 281 013 363 / 8200635663 (Renault Master 2.5 dCi 145HP 2007)
• 0 281 013 364 / 8200635663 (Renault Trafic 2.0 dCi 90HP 2005)
• 0 281 013 366 / 8200601334 (Renault Megane II 1.9 dCi 120HP 2005)
• 0 281 013 806 / 8200689519 (Renault Mascott 3.0 dCi 150HP 2008)
• 0 281 013 907 / 8200705747 (Renault Megane II 1.9 dCi 130HP 2008)
• 0 281 014 208 / 8200666516 (Renault Trafic 2.0 dCi 90HP 2008)
• 0 281 014 648 / 8200666516 (Renault Trafic 2.0 dCi 90HP 2008)
• 0 281 015 330 / 8200935115 (Renault Trafic 2.0 dCi 115HP 2007)
• 0 281 015 798 / 237100055R (Renault Megane II 1.9 dCi 130HP 2007)
• 0 281 017 065 / 8200935115 (Renault Trafic 2.0 dCi 115HP 2007)

Bosch EDC16CP33 (Nissan)

• Nissan Qashqai 2.0 dCi 150HP 2007-2013
• Nissan X-Trail 2.0 dCi 150HP 2007-2014

Numer ECU:

• 0 281 013 855 (Nissan Qashqai 2.0 dCi 150HP 2008)
• 0 281 013 874 (Nissan X-Trail 2.0 dCI 150HP 2008)
• 0 281 014 362 (Nissan X-Trail 2.0 dCI 150HP 2011)
• 0 281 014 858 (Nissan Qashqai 2.0 dCi 150HP 2010)

Bosch EDC17

Numer ECU:

• 0 281 032 654 / 237106319R / 237107476R (Renault Clio IV 1.5 dCi 90HP 2016)
• 0 281 032 215 / 237106319R / 237106635R (Renault Captur 1.5 dCi 90HP 2015)
• 0 281 031 364 / 237103888R / 237107551R (Renault Trafic III 1.6 dCi 115HP 2016)
• 0 281 030 899 / 237104376R / 237104627R (Renault Clio IV 1.5 dCi 90HP 2016)
• 0 281 030 439 / 237102213R / 237104128R (Renault Clio IV 1.5 dCi 75HP 2015)
• 0 281 019 840 / 237101754R / 237103316R (Renault Trafic II 2.0 dCi 115HP 2013)
• 0 281 019 457 / 237102213R / 237102553R (Dacia Sandero 1.5 dCi 90HP 2014)
• 0 281 019 147 / 237102213R / 237102720R (Renault Clio IV 1.5 dCi 90HP 2014)
• 0 281 019 138 / 237102213R / 237102529R (Dacia Lodgy 1.5 90HP dCi 2013)
• 0 281 019 110 / 237102265R / 237102639R (Renault Master III 2.3 dCi 150HP 2014)
• 0 281 018 941 / 237102213R / 237102216R (Dacia Lodgy 1.5 90HP dCi 2015)
• 0 281 017 977 / 237100899R / 237101487R (Renault Master III 2.3 dCi 150HP 2012)
• 0 281 017 038 / 237100899R / 237100803R (Renault Master III 2.3 dCi 150HP 2011)
• 0 281 016 808 / 237100637R / 237100801R (Renault Master III 2.3 dCi 150HP 2013)

Bosch EDC17C42

Numer ECU:

• 0 281 030 577 / 237102265R / 237104134R (Renault Master III 2.3 dCi 125HP 2014)

Bosch EDC17C84 (ISK Password Program availabe)

Numer ECU:

• 0 281 032 811 / 237106319R (Renault Captur 1.5 dCi 90HP 2016)

Bosch EDC MSA 15.5-5.x

Numer ECU:

• 0 281 001 699 / 7700105953 (Renault Megane 1.9 dTi 98HP 1997)
• 0 281 001 739 / 7700107088 (Renault Megane 1.9 dTi 98HP 1999)
• 0 281 001 766 / 7700105952 (Renault Laguna 1.9 dTi 98HP 1999)
• 0 281 001 809 / 7700105953 (Renault Megane 1.9 dTi 98HP 1998)
• 0 281 001 810 / 7700107088 (Renault Megane 1.9 dTi 98HP 1999)
• 0 281 001 877 / 7700107343 (Renault Megane 1.9 dTi 98HP 1999)
• 0 281 001 878 / 7700109062 (Renault Clio II 1.9 dTi 80HP 1999)
• 0 281 001 906 / 7700112630 (Volvo V40 1.9 d 95HP 2000)
• 0 281 001 969 / 7700111552 (Renault Megane 1.9 dCi 98HP 2000)
• 0 281 001 995 / 7700113281 (Renault Laguna 1.9 dTi 98HP 1999)
• 0 281 010 077 / 7700111552 (Renault Megane 1.9 dTi 98HP 2000)
• 0 281 010 142 / 7700115265 (Renault Master 1.9 dTi 80HP 2000)
• 0 281 010 143 / 7700113283 (Renault Espace III 1.9 dTi 98HP 2001)

Bosch EDC MS 6.3

Numer ECU:

• 0 281 001 537 / 50033236 (Iveco 35S11V 2.8 HPi 125HP 2001)
• 0 281 001 892 / 8200053809 (Renault Mascott 2.8 dCi 125HP 2002)

Bosch MD1CS006 (ISK Password Program Available)

Numer ECU:

• 0 281 036 484 / 237104328S (Dacia Dokker 1.5 dCi 75HP 2015)

Bosch M 4.4.2

Numer ECU:

• 0 261 204 012 / 7700864456 (Renault Safrane 2.5 165HP 1999)
• 0 261 204 417 / 7700868309 (Renault Laguna 3.0 190HP 2001)
• 0 261 204 434 / 7700108812 (Renault Espace III 3.0 190HP 2000)

Continental EMS3110

Numer ECU:

• S180077160 A / 237104814R (Renault Megane III 2.0 RS Turbo 265HP 2010)
• S180077159 A / 237102920R (Renault Megane III 2.0 RS Turbo 265HP 2012)
• S180077141 A / 237100584R (Renault Megane III 2.0 TCe 180HP 2011)
• S180042157 A / 237101907R (Renault Clio IV 1.2 TCe 120HP 2014)

Continental EMS3120 (ISK Password Program Available)

• Dacia Duster 1.6 105HP 2010-2018

Numer ECU:

• S180177122 A / 237104234R (Dacia Duster 1.6 105HP 2013)

Continental EMS3125 (ISK Password Program Available)

• Renault Clio IV 1.2 75HP 2014-2020

Numer ECU:

• A2C99722200 / 237107314R (Renault Clio IV 1.2 75HP 2013)

Numer ECU:

• A2C98757200 / 23710HX42C (Nissan Qashqai II 1.2 DIG-T 115HP 2015)

Continental EMS3160

• Nissan Qashqai II 1.3 DIG-T 140HP 2018-2020

Numer ECU:

• A2C1934380401 / A2829004400 (Nissan Qashqai II 1.3 DIG-T 140HP 2020)

Continental EMS3161 (ISK Password Program Available)

Numer ECU:

Continental SID305

• Renault Fluence III 1.5 dCi 110HP 2009-2016
• Renault Kangoo II 1.5 dCi 105HP 2008-2010
• Renault Laguna III 1.5 dCi 110HP 2007-2015
• Renault Megane III 1.5 dCi 110HP 2008-2015
• Renault Megane III 1.5 dCi 105HP 2008-2015
• Renault Scenic III 1.5 dCi 105HP 2009-2016

Numer ECU:

• S180067167 A / 237101942R (Renault Kangoo II 1.5 dCi 105HP 2008)
• S180067165 A / 237101480R (Renault Kangoo II 1.5 dCi 105HP 2015)
• S180067144 A / 237101495R (Renault Megane III 1.5 dCi 105HP 2013)
• S180068143 A / 237101478R (Renault Laguna III 1.5 dCi 110HP 2011)
• S180067142 A / 237101454R (Renault Megane III 1.5 dCi 105HP 2012)
• S180067140 A / 237100822R (Renault Laguna III 1.5 dCi 110HP 2013)
• S180067137 A / 237100386R (Renault Megane III 1.5 dCi 105HP 2012)
• S180067135 A / 237100348R (Renault Megane III 1.5 dCi 105HP 2014)
• S180067124 A / 237103956R (Renault Scenic III 1.5 dCi 105HP 2015)
• S180067122 A / 237103738R (Renault Megane III 1.5 dCi 105HP 2011)
• S180067109 A / 237100777R (Renault Megane III 1.5 dCi 110HP 2014)
• S180067107 A / 237100345R (Renault Scenic III 1.5 dCi 105HP 2012)
• S180067106 A / 237100307R (Renault Megane III 1.5 dCi 110HP 2012)

Continental SID306

• Dacia Duster 1.5 dCi 110HP 2010-2018

Numer ECU:

• S180095134 A / 237104454R (Dacia Duster 1.5 dCi 110HP 2012)

Continental SID307

• Dacia Duster 1.5 dCi 110HP 2010-2018
• Renault Kangoo II 1.5 110HP 2010-2018
• Renault Megane III 1.5 dCi 110HP 2010-2015

Numer ECU:

• S180153603 A / 237103727R (Renault Megane III 1.5 dCi 110HP 2014)
• S180153170 A / 237104559R (Renault Megane III 1.5 dCi 110HP 2013)
• S180153163 A / 237103725R (Renault Kangoo II 1.5 dCi 110HP 2016)
• S180153110 A / 237104833R (Renault Megane III 1.5 dCi 110HP 2015)
• S180153105 A / 237103571R (Dacia Duster 1.5 dCi 110HP 2013)
• S180153104 A / 237102426R (Renault Megane III 1.5 dCi 110HP 2012)

Continental SID309

• Opel Movano 2.3 CDTi 136HP 2010-2022
• Renault Master III 2.3 dCi 136HP 2010-2022

Numer ECU:

• S180193133A / 237105693R (Opel Movano 2.3 CDTi 136HP 2018)

Continental SID310

• Dacia Duster 1.5 dCi 4x4 110HP 2010-
• Dacia Lodgy 1.5 dCi 110HP 2012-2018
• Renault Captur 1.5 dCi 110HP 2013-2019
• Renault Clio IV 1.5 dCi 90HP 2012-2019
• Renault Kadjar 1.5 dCi 110HP 2015-2019
• Renault Master 2.3 dCi Bi-Turbo 165HP 2014-2018
• Renault Megane III 1.5 dCi 110HP 2008-2015
• Renault Megane IV 1.5 dCi 110HP 2015-2019
• Renault Scenic III 1.5 dCi 105HP 2009-2016
• Renault Talisman 1.5 dCi 110HP 2015-2019
• Renault Trafic III 1.6 dCi 115HP 2014-2019

Numer ECU:

• A2C98849200 / 237106968R (Dacia Duster 1.5 dCi 110HP 2015)
• A2C98149700 / 237106691R (Renault Scenic III 1.5 dCi 105HP 2010)
• A2C39839700 / 237108214R (Renault Trafic 1.6 dCi 115HP 2014)
• A2C38641900 / 237106677R (Renault Megane IV 1.5 dCi 110HP 2016)
• A2C38641900 / 237106677R (Renault Megane IV 1.5 dCi 110HP 2016)
• A2C38340000 / 237107572R (Renault Master 2.3 dCi Bi-Turbo 165HP 2014)
• A2C13071801 / 237100827S (Renault Master 2.3 dCi Bi-Turbo 165HP 2014)
• A2C13071800 / 237109955R (Renault Master 2.3 dCi Bi-Turbo 165HP 2014)
• A2C12510103 / 237109890R (Renault Captur 1.5 dCi 110HP 2018)
• A2C12510102 / 237109855R (Dacia Duster 1.5 dCi 4x4 110HP 2018)
• A2C11028100 / 237108788R (Renault Master 2.3 dCi Bi-Turbo 165HP 2014)
• A2C11028100 / 237108788R (Renault Master 2.3 dCi Bi-Turbo 165HP 2014)
• A2C10818200 / 237107343R (Renault Talisman 1.5 dCi 110HP 2015)

Continental SID321 (ISK Password Program Available)

• Delphi DCM1.

Numer ECU:

• 8201002106 / 8201127198 (Dacia Duster 1.5 dCi 110HP 2013)
• 8200911562 / 8200582518 (Renault Kangoo II 1.5 dCi 85HP 2010)
• 8200911560 / 8200909666 (Renault Kangoo II 1.5 dCi 85HP 2009)
• 8200513076 / 8200582518 (Renault Kangoo I 1.5 dCi 85HP 2007)
• 8200513058 / 8200603070 (Renault Clio II 1.5 dCi 82HP 2004)
• 8200399038 / 8200513163 (Renault Clio III 1.5 dCi 85HP 2006)
• 8200398934 / 8200449080 (Renault Modus 1.5 dCi 85HP 2005)
• 8200313076 / 8200582518 (Renault Kangoo II 1.5 dCi 85HP 2007)

Delphi DCM3.4

Numer ECU:

• 237102575R / 237104028R (Renault Captur 1.5 dCi 90HP 2013)
• 237101989R / 237101990R (Renault Clio III 1.5 dCi 90HP 2012)
• 237100914R / 237101715R (Renault Megane III 1.5 dCi 90HP 2012)
• 237100875R / 237101293R (Renault Clio III 1.5 dCi 90HP 2012)
• 237100703R / 237101862R (Dacia Duster 1.5 dCi 90HP 2011)
• 237100121R / 237100425R (Renault Megane III 1.5 dCi 90HP 2009)
• 237100120R / 237100422R (Renault Megane III 1.5 dCi 90HP 2009)

Delphi DDCR

Numer ECU:

• 8200498185 / 8200469333 (Renault Kangoo I 1.5 dCi 80HP 2006)
• 8200334419 / 8200469340 (Renault Megane II 1.5 dCi 82HP 2002)
• 8200331477 / 8200412258 (Renault Megane II 1.5 dCi 82HP 2005)
• 8200259832 / 8200308212 (Renault Megane II 1.5 dCi 82HP 2003)
• 8200253520 / 8200140057 (Renault Kangoo I 1.5 dCi 80HP 2004)
• 8200212348 / 8200222917 (Renault Clio II 1.5 dCi 80HP 2003)
• 8200206670 / 8200129063 (Renault Clio II 1.5 dCi 80HP 2001)
• 8200180595 / 8200126063 (Renault Clio II 1.5 dCi 80HP 2001)
• 8200259934 / 8200140057 (Renault Kangoo I 1.5 dCi 80HP 2003)
• 8200123485 / 8200129109 (Renault Kangoo I 1.5 dCi 80HP 2003)
• 8200250662 / 8200129063 (Renault Clio II 1.5 dCi 80HP 2002)

Hitachi MEC32-020 -> MEC32-110

• Vehicles equipped with NATS 6:
• Nissan Micra K12 1.4 88HP 2003-2010
• Nissan Micra K12 1.2 80HP 2003-2010
• Nissan Micra K12 1.0 65HP 2003-2010

Numer ECU:

• MEC32-110 K4 4318 (Nissan Micra K12 1.4 88HP 2005)
• MEC32-100 F3 3626 (Nissan Micra K12 1.2 80HP 2003)
• MEC32-080 F3 3314 (Nissan Micra K12 1.2 80HP 2004)
• MEC32-060 H3 3925 (Nissan Micra K12 1.4 88HP 2004)
• MEC32-040 F3 3311 (Nissan Micra K12 1.2 80HP 2004)
• MEC32-020 E3 3210 (Nissan Micra K12 1.0 65HP 2004)

Hitachi MEC81-730

• Vehicles equipped with NATS 6:
• Nissan Almera 1.8 115HP 2002-2006
• Nissan Almera 1.5 98HP 2002-2006
• Nissan Almera Tino 1.8 115HP 2000-2006
• Nissan Micra 1.2 80HP 2003-2010
• Nissan Murano 3.5 V6 234HP 2007-2008
• Nissan Note 1.4 88HP 2006-2012
• Nissan Pathfinder 3.5 220HP 2000-2004
• Nissan Primera P12 2.0 140HP 2002-2007
• Nissan Teana 2.3 172HP 2003-2008

Numer ECU:

• MEC32-210 E3 4621 (Nissan Almera N16 1.5 98HP 2004)
• MEC32-211 D1 5Y22 (Nissan Almera N16 1.5 98HP 2004)
• MEC32-410 E3 4316 (Nissan Almera N16 1.8 115HP 2004)
• MEC32-411 A1 4806 (Nissan Almera Tino 1.8 115HP 2004)
• MEC32-680 A1 2928 (Nissan Primera P12 2.0 140HP 2002)
• MEC36-060 A3 4802 (Nissan Pathfinder 3.5 220HP 2003)
• MEC37-300 D1 6Y02 (Nissan Micra 1.2 80HP 2006)
• MEC37-650 C1 9129 (Nissan Note 1.4 88HP 2009)
• MEC43-010 A1 5913 (Nissan Teana 2.3 172HP 2004)
• MEC81-730 A1 6Y24 (Nissan Murano 3.5 V6 234HP 2007)

Hitachi MEC with 93C46 and 93C56 EEPROM memory - 1.5 | 1.8 | 2.0 gasoline

• Nissan Almera (N16) 1.8 114 2000 - 2006
• Nissan Almera (N16) 1.5 90 2000 - 2002
• Nissan Almera Tino 1.8 116 2003 - 2006
• Nissan Almera Tino 1.8 114 2000 - 2003
• Nissan Primera (P11) 2.0 140 1999 - 2002
• Nissan Primera (P11) 1.8 113 1999 - 2002

Numer ECU:

• MEC11-210 G3 0623 XZ Nissan Almera (N16) 1.8 114HP 2001
• MEC11-100 E4 9708 48 Nissan Primera (P11) 1.8 113HP 2001
• MEC11-100 E4 9818 48 Nissan Primera (P11) 1.8 113HP 1998
• MEC11-100 E4 9X21 48 Nissan Primera (P11) 1.8 113HP 2000
• MEC11-100 F4 0229 ZB Nissan Primera (P11) 1.8 113HP 2000
• MEC11-100 F4 9720 48 Nissan Primera (P11) 1.8 113HP 2002
• MEC11-100 F4 9Y29 ZB Nissan Primera (P11) 1.8 113HP 2000
• MEC11-100 H4 0517 9G Nissan Primera (P11) 1.8 113HP 2001
• MEC11-200 E3 0203 ZE Nissan Primera (P11) 1.8 113HP 2001
• MEC11-200 F3 0719 XP Nissan Almera (N16) 1.5 90HP 2001
• MEC11-230 E2 0516 BP Nissan Almera Tino 1.8 114HP 2000
• MEC12-040 F5 9Z10 49 Nissan Primera (P11) 2.0 140HP 2000
• MEC13-400 B1 1Y02 YT Nissan Almera Tino 1.8 114HP 2000
• MEC14-315 B1 2416 FM Nissan Almera Tino 1.8 114HP 2001
• MEC19-020 A1 0207 TM Nissan Primera (P11) 2.0 140HP 2001
• MEC19-500 A1 1109 0Y Nissan Primera (P11) 2.0 140HP 2001
• MEC19-500 B1 1614 0Y Nissan Primera (P11) 2.0 140HP 2000
• MEC20-010 A1 9Y12 TL Nissan Primera (P11) 1.8 113HP 2002
• MEC20-200 B2 0111 TQ Nissan Almera (N16) 1.8 114HP 2000
• MEC20-500 A1 0X04 2T Nissan Primera (P11) 1.8 113HP 2001
• MEC20-500 A1 0X26 2T Nissan Primera (P11) 1.8 113HP 2002
• MEC20-500 A1 0Z12 2T Nissan Primera (P11) 1.8 113HP 2001
• MEC20-500 A1 1111 2T Nissan Primera (P11) 1.8 113HP 2001
• MEC20-505 B1 1913 XU Nissan Primera (P11) 1.8 113HP 2001
• MEC20-505 B1 1X15 XU Nissan Almera (N16) 1.8 114HP 2001
• MEC20-525 B1 1Y06 ZN Nissan Primera (P11) 1.8 113HP 2001
• MEC20-600 A1 0Y03 1Y Nissan Almera (N16) 1.5 90HP 2001
• MEC20-600 A1 0Y20 1Y Nissan Almera (N16) 1.5 90HP 2002
• MEC20-600 A1 0Z19 1Y Nissan Almera (N16) 1.5 90HP 2001
• MEC20-601 A1 1227 YN Nissan Almera (N16) 1.5 90HP 2001
• MEC20-601 A1 1531 YN Nissan Almera (N16) 1.5 90HP 2001
• MEC20-601 B1 1503 ZQ Nissan Almera (N16) 1.5 90HP 2001
• MEC20-601 B1 1814 ZQ Nissan Almera (N16) 1.5 90HP 2002
• MEC20-601 B1 1X25 ZQ Nissan Almera (N16) 1.5 90HP 2002
• MEC20-605 B1 1502 YE Nissan Almera (N16) 1.5 90HP 2002
• MEC20-605 B1 1705 YE Nissan Almera (N16) 1.5 90HP 2001
• MEC20-605 B1 1712 YE Nissan Almera (N16) 1.5 90HP 2001
• MEC20-605 B1 1716 YE Nissan Almera (N16) 1.5 90HP 2000
• MEC20-621 C1 2531 9G Nissan Almera (N16) 1.8 114HP 2003
• MEC20-625 B1 2319 YF Nissan Almera (N16) 1.8 114HP 2001
• MEC20-625 C1 2502 YF Nissan Almera (N16) 1.8 114HP 2002
• MEC20-705 A1 1404 Y9 Nissan Almera Tino 1.8 116HP 2005

Hitachi NEC008-669

• Vehicles equipped with NATS 6
• Nissan Rogue 2.5 170HP 2013-2020

Numer ECU:

• NEC008-669 K3 725 (Nissan Rogue 2.5 170HP 2016)

Lucas DCU3R

• Renault Clio II 1.9 d 64 1998-2001
• Renault Kangoo 1.9 dTi 80 1997-2003
• Renault Megane 1.9 d 64 1999-2000

Numer ECU:

• 7700114875 / 7700105955 Renault Clio II 1.9 d 64 2000
• 7700114876 / 7700111549 Renault Kangoo 1.9 dTi 80 2002
• 7700115496 / 7700105954 Renault Megane 1.9 d 64 1999
• 8200126607 / 8200131940 Renault Kangoo 1.9 dTi 80 1998
• 8200150549 / 7700115802 Renault Kangoo 1.9 dTi 80 2001

Magneti Marelli IAW 5NR2

• Renault Clio II 1.2 75HP 2001-2012

Numer ECU:

• 8200181482 / 8200285315 (Renault Clio II 1.2 75HP 2006)

Sagem S2000

Numer ECU:

• 8200045893 / 8200141333 / 21645975-1 (Renault Laguna II 1.6 107HP 2003)
• 8200045893 / 8200158443 / 21646437-7 (Renault Laguna II 1.6 107HP 2002)
• 8200153834 / 8200153840 / 21646433-5 (Renault Clio II 1.2 75HP 2003)
• 8200153834 / 8200153840 / 21646433-5 (Renault Clio II 1.2 58HP 2002)
• 8200153834 / 8200187028 / 21646877-6 (Renault Twingo I 1.2 75HP 2002)
• 8200153834 / 8200396928 / 21584385-5 (Renault Clio II 1.2 75HP 2001)
• 8200153837 / 8200164737 / 21646548-6 (Renault Laguna II 1.8 120HP 2003)
• 8200162222 / 8200239737 / 21647537-5 (Renault Avantime 2.0 Turbo 164HP 2002)
• 8200164728 / 8200164728 / 21646548-6 (Renault Laguna II 1.6 107HP 2002)
• 8200230514 / 8200265383 / 21647674-9 (Renault Laguna II 1.8 120HP 2003)
• 8200278376 / 8200278378 / 21647842-5 (Renault Laguna II 1.8 120HP 2002)
• 8200279458 / 8200323228 / 21584309-5 (Renault Espace IV 2.0 Turbo 163HP 2003)

Sagem / Johnson Controls / Valeo S3000

Numer ECU:

• 8200509963 / 8200758478 / 21586135-8A (Renault Megane II 2.0RS 224HP 2008)
• 8200509516 / 8200509552 / 21585421-2A (Renault Megane II 1.6 115HP 2008)
• 8200461733 / 8200770187 / 21586153-5A (Renault Clio III 2.0 197HP 2006)
• 8200461733 / 8200693067 / 21585948-6A (Renault Modus 1.6 112HP 2008)
• 8200461733 / 8200617062 / 21585787-5A (Renault Clio III 2.0 197HP 2006)
• 8200444583 / 8200444586 / 21585097-0A (Renault Laguna II 2.0 Turbo 163HP 2007)
• 8200384398 / 8200390568 / 2158485-8A (Renault Clio III 2.0 197HP 2008)
• 8200376474 / 8200411717 / 21584913-3A (Renault Modus 1.6 112HP 2005)
• 8200298457 / 8200321263 / 21584288-2A (Renault Megane II 1.6 115HP 2004)

Siemens EMS3132

Numer ECU:

• S110140201 A / 8200326395 (Renault Clio II 1.2 58HP 2003)
• S110140200 A / 8200323683 (Renault Clio II 1.2 58HP 2004)
• S110140100 A / 8200272410 (Renault Scenic I 2.0 139HP 2001)
• S110140025 A / 8200856659 (Dacia Sandero 1.6 87HP 2008)
• S110140002 A / 8200326391 (Renault Twingo I 1.2 60HP 2006)
• S110140000 A / 8200298164 (Renault Megane I 1.4 95HP 2002)
• S110110703 B / 8200396231 (Renault Kangoo I 1.4 75HP 2003)\

Siemens EMS3134

Numer ECU:

• S118301122 B / 8200326741 (Renault Clio II 1.4 98HP 2003)
• S118301122 A / 8200326741 (Renault Clio II 1.4 98HP 2001)
• S118301124 A / 8200396037 (Renault Kangoo I 1.6 95HP 2005)
• S118301131 A / 8200512582 (Renault Kangoo I 1.6 95HP 2008)
• S118303122 B / 8200326741 (Renault Clio II 1.4 98HP 2003)
• S118303122 A / 8200326745 (Renault Clio II 2.0 RS 180HP 2004)
• S118303123 A / 8200369381 (Renault Clio II 2.0 RS 180HP 2005)

Siemens SID301

Numer ECU:

• S122326107 A / 8200542288 (Renault Clio III 1.5 dCi 105HP 2007)
• S122326108 A / 8200565863 (Renault Clio III 1.5 dCi 105HP 2008)
• S122326109 A / 8200565863 (Renault Mégane III 1.5 dCi 105HP 2008)
• S122326110 A / 8200659536 (Renault Scenic II 1.5 Dci 106HP 2007)
• S122326111 A / 8200766462 (Renault Mégane II 1.5 dCi 105HP 2007)
• S122326113 A / 8200804775 (Renault Scenic II 1.5 dCi 106HP 2005)
• S122326114 A / 8200843713 (Renault Mégane III 1.5 dCi 105HP 2009)
• S122326115 A / 8200953529 (Renault Kangoo II 1.5 dCi 110HP 2012)
• S122326116 A / 8201051836 (Renault Kangoo II 1.5 dCi 110HP 2011)
• S122326131 A / 8200756434 (Renault Scenic II 1.5 dCi 106HP 2006)
• S122326132 A / 8200793109 (Renault Laguna III 1.5 dCi 110HP 2010)
• S122326133 A / 8200882381 (Renault Laguna III 1.5 dCi 110HP 2009)
• S122326134 A / 8200981816 (Renault Laguna III 1.5 dCi 110HP 2010)



Siemens SID304

Numer ECU:



• S126074104 A / 8200669964 (Renault Modus 1.5 dCi 105HP 2006
• S126074106 A / 8200755773 (Renault Megane II 1.5 dCi 105HP 2007)
• S126074108 A / 8200847131 (Renault Megane II 1.5 dCi 105HP 2008)
• S126074108 B / 8200847131 (Renault Kangoo I 1.5 dCi 105HP 2007)
• S126074109 A / 8200977486 (Renault Kangoo II 1.5 dCi 105HP 2010)

Siemens SID 309

Numer ECU:

• S180193133A / 237105693R (Opel Movano 2.3CDTi 136HP 2018)

Siemens / Continental SIM32

Numer ECU:

• S120200105 A / 8200522357 (Renault Clio III 1.2 75HP 2012)
• S120200116 A / 8200937869 (Renault Clio III 1.2 75HP 2011)
• S120201108 B / 8200454467 (Renault Clio III 1.2 75HP 2005)
• S120201108 A / 8200454467 (Renault Clio III 1.2 75HP 2008)
• S120201109 A / 8200473744 (Renault Twingo I 1.2 75HP 2005)
• S120201212 F / 8200516963 (Renault Kangoo I 1.2 60HP 2008)
• S120202105 B / 8200789222 (Renault Modus 1.2 75HP 2010)
• S120202116 A / 8200851165 (Renault Clio III 1.2 TCe 100HP 2009)
• S120202120 A / 8201077701 (Renault Clio III 1.2 TCe 100HP 2010)
• S120202121 A / 8201076738 (Renault Twingo I 1.2 75HP 2005)



Siemens Sirius 32

Numer ECU:

• S110010303 C / 8200046491 (Renault Clio II 1.4 75HP 2000)
• S110010004 D / 8200055742 (Renault Laguna I 1.8 95HP 1997)
• S110110008 A / 8200069290 (Renault Clio II 1.4 75HP 2001)
• S110110016 B / 8200109025 (Renault Kangoo I 1.4 75HP 2000)
• S110115000 B / 8200162378 (Renault Clio II 1.2 58HP 2003)
• S110115000 B / 8200162378 (Renault Clio II 1.2 58HP 2001)

Siemens Sirius 34

Numer ECU:

• S118301104 A / 8200124318 (Renault Clio II 1.4 98HP 2004)
• S118301104 B / 8200124318 (Renault Mégane Coupé 1.6 75HP 2002)
• S118301109 A / 8200164131 (Renault Clio II 1.4 98HP 2001
• S118301110 A / 8200164240 (Renault Clio II 1.4 98HP 2001)
• S118301111 A / 8200189312 (Renault Clio II 1.6 90HP 2001)
• S118301113 B / 8200214973 (Renault Clio II 1.4 98HP 2002)
• S118301118 A / 8200374254 (Renault Clio II 1.4 98HP 2001)
• S118301205 G / 8200214979 (Renault Clio II 1.4 98HP 2003)
• S118301211 B / 8200151447 (Renault Kangoo I 1.6 95HP 2001)
• S118301211 C / 8200162516 (Renault Kangoo I 1.6 95HP 2002)
• S118301212 B / 8200149200 (Renault Kangoo I 1.6 95HP 2002)
• S118301213 B / 8200149196 (Renault Kangoo I 1.6 95HP 2002)
• S118301213 C / 8200204732 (Renault Mégane 1.4 75HP 2001)
• S118301216 B / 8200169220 (Renault Kangoo I 1.6 95HP 2002)
• S118301220 C / 8200235099 (Renault Kangoo I 1.6 95HP 2005)
• S118301305 F / 8200189330 (Renault Clio II 1.4 98HP 2004)
• S118301311 B / 8200217414 (Renault Clio II 1.4 98HP 2001)
• S118303109 A / 8200214974 (Renault Clio II 2.0 169HP 2002)
• S118303109 B / 8200214973 (Renault Clio II 2.0 169HP 2001)
• S118303425 A / 8200324543 (Renault Clio II 2.0 Turbo 180HP 2004)

Valeo V40

Numer ECU:

• V29005568A / 23710 0293R / 23710 0294R (Renault Megane III 1.6 110HP 2013)
• V29006869B / 23710 0644R / 23710 0131R (Renault Fluence 1.6 110HP 2012)
• V29010712A / 23710 1722R / 23710 1353R (Renault Megane III 1.6 110HP 2013)
• V29021066A / 23710 2299R / 23710 1612R (Dacia Duster 1.6 114HP 2011)
• V29051520A / 23710 4856R / 23710 1353R (Renault Megane III 1.6 110HP 2016)

Valeo V42

Numer ECU:

• V29008181A / 23710 0991R / 23710 0531R (Dacia Sandero II 1.6 82HP 2013)
• V29008983A / 23710 1180R / 23710 0531R (Dacia Sandero II 1.0 77HP 2015)
• V29010298A / 23710 1544R / 23710 1543R (Dacia Sandero II 1.6 84HP 2014)
• V29011511A / 23710 1808R / 23710 0531R (Dacia Logan 1.0 80HP 2017)
• V29014250A / 23710 1976R / 23710 1543R (Dacia Sandero II 1.2 75HP 2015)
• V29015370A / 23710 2035R / 23710 1414R (Dacia Duster 2.0 143HP 2012)
• V29021079A / 23713 2307R / 23710 2071R (Dacia Lodgy 1.6 82HP 2013)
• V29023683A / 23710 2472R / 23710 1543R (Dacia Sandero II 1.0 77HP 2017)
• V29028919A / 23710 2885R / 23710 2071R (Renault Clio IV 1.2 75HP 2015)
• V29029813A / 23710 2937R / 23710 2479R (Dacia Sandero II 1.2 75HP 2016)
• V29034179A / 23710 3317R / 23710 2071R (Renault Clio IV 1.2 75HP 2013)
• V29037351A / 23710 3560R / 23710 3569R (Dacia Logan 1.0 80HP 2016)

Valeo V50

Numer ECU:

• V29029647A / 237102706R / 237102928R (Renault Captur 0.9 TCe 90HP 2015)
• V29030397A / 237102806R / 237103006R (Dacia Logan II 0.9 TCe 90HP 2015)
• V29030399A / 237102803R / 237103009R (Dacia Logan II 1.2 75HP 2016)
• V29034775A / 237103352R / 237103353R (Renault Captur 0.9 TCe 90HP 2013)
• V29035182A / 237102706R / 237103368R (Renault Captur 0.9 TCe 90HP 2016)

Valeo V50.1

Numer ECU:

• V29072784 A / 23710 5499R / 23710 7175R (Dacia Sandero II 1.0 TCe 73HP 2017)
• V29076610 A / 23710 6690R / 23710 7751R (Renault Clio IV 0.9 TCe 90HP 2017)
• V29086931 A / 23710 5499R / 23710 9921R (Dacia Logan 0.9 TCe 90HP 2015)

Emulator obsługuje również następujące sterowniki ECU wyposażone w procesor TMS374:

Siemens

• Siemens Fenix 5 (Renault | Volvo)

Sagem

• Sagem Safir 1 (Renault
• Sagem Safir 2 (Citroen | Peugeot | Renault)
• Sagem SL96 (Citroen | Peugeot)

Magneti Marelli

• Magneti Marelli IAW 1AP10 (Citroen | Peugeot)
• Magneti Marelli IAW 1AP20 (Citroen | Peugeot)
• Magneti Marelli IAW 1AP40 (Citroen | Peugeot)
• Magneti Marelli IAW 1AP41 (Citroen | Peugeot)
• Magneti Marelli IAW 1AP43 (Citroen | Peugeot)
• Magneti Marelli IAW 1AP80 (Citroen | Peugeot)
• Magneti Marelli IAW 1AP81 (Citroen | Peugeot)
• Magneti Marelli IAW 1AP83 (Citroen | Peugeot)
• Magneti Marelli IAW 1AP90 (Citroen | Peugeot)

Supported ESL:

• Renault Captur
• Renault Clio III
• Renault Clio IV
• Renault Espace IV (2004-2006)
• Renault Espace IV (phase II)
• Renault Espace IV (phase III)
• Renault Fluence
• Renault Laguna II (lift 2004-2006)
• Renault Laguna III
• Renault Megane II (lift 2004-2006)
• Renault Megane III
• Renault Scenic II
• Renault Scenic III
• Renault Talisman



Uwaga!
- Wszystkie rozwiązania są sprawdzone !!!
